This filament sensor has many advantages :

• It facilitate the filament change operations. When filament is detected by the sensor that triggers an auto load material function.
• Since we don't use the rear filament sensor, the reverse bowden path is simplified. This allows an easier insertion of the filament and reduce drag.
• It's easier to relocate the spool anywhere you want, it's especially true for the K1.
• The sensor works with TPU even if the reverse bowden is bypassed.
• It also reduce the length of leftover when a spool ends as the sensor is super close to the extruder.
• And it's useful to have a filament runout sensor inside the toolhead when you want to use a MMU (near futur proof ^^ ).

Bill of material.

• 1x JST MX 1.25 3 pins (pre-crimped with 15cm cable length.
• 1x microswitch : Omron D2F-FL or D2F-L ; 1A or 2A 125V AC.
• 1x 4mm steel ball (alternatively 608 bearing contains 4mm balls *).
• 1x M2 x 8mm STS (self tapping screw).
• 1x Heat shrink tubing ± 3mm diameter (optional).

* You can find some 4mm steel balls inside a 608 bearing. (RS types are super easy to open)

Recommended Print Settings :

Material : ASA/ABS

Layer height : 0.2
Wall count : 4
Top/bottom layers : 5
Infill : 30%

No Support

Installation :

1. Microswitch modifications

You will need to slightly reduce the length of the microswitch lever. Cut ± 2mm at the end of the lever. The lever needs to be flush with the microswitch body

1.1 Remove the lever to trim it. Use a plier to pinch the base of the lever and release it from its hinge

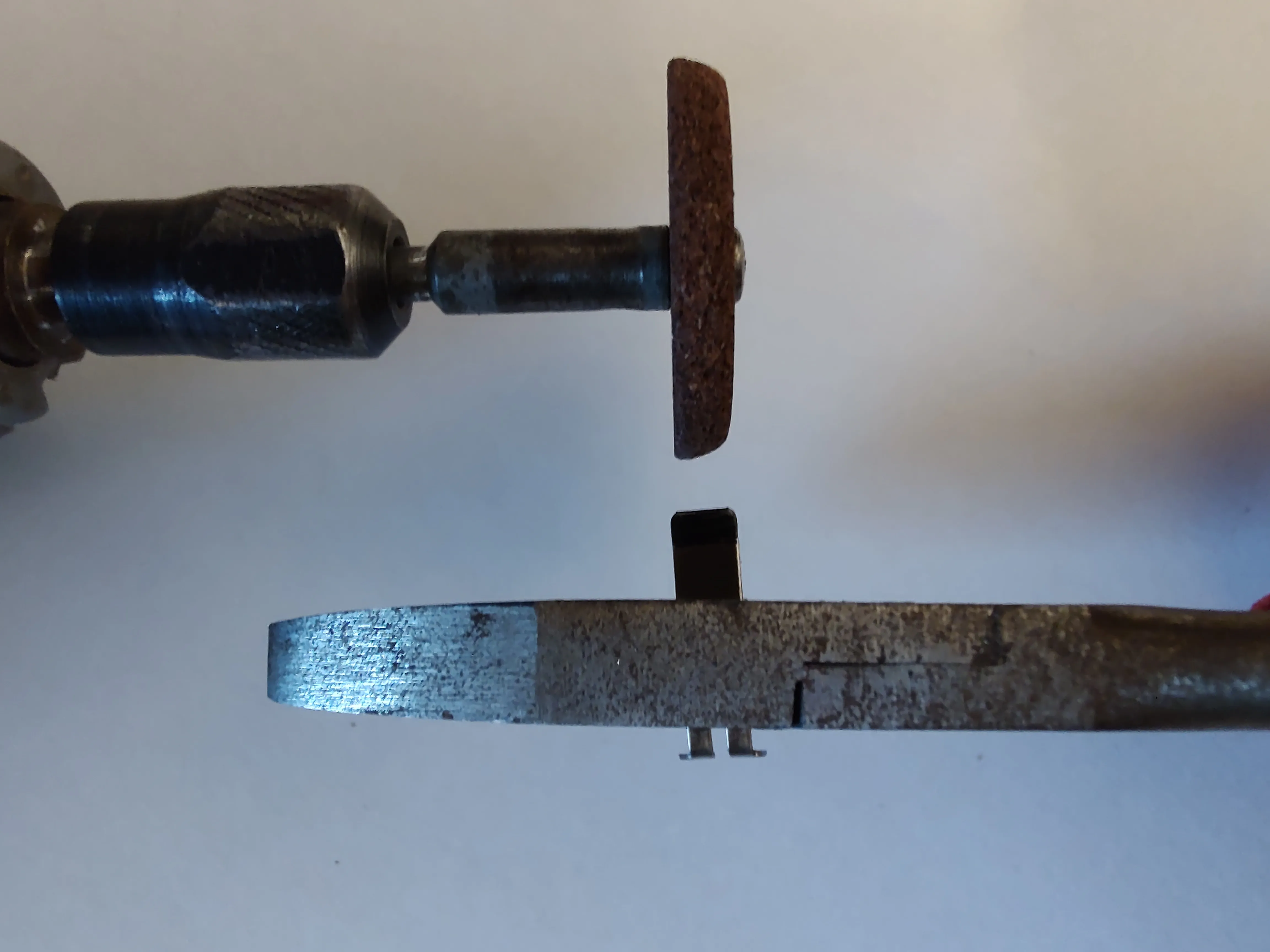

1.2 Reduce the lever length by ±2 mm (I used a Dremel to do it)

1.3 Once it's done, reinstall the lever on the microswitch. And check the lever length, it must be flush with the body when it's in closed position.

1.4 Now you will need to bend the pins on the microswitch. Put the microswitch on its side with the lever facing the right and open at the bottom. Bend them upwards.

2. Wiring

2.1 Prepare the connector and the cables. A good cable length is around 12.5 cm. Trim or extend them if necessary.

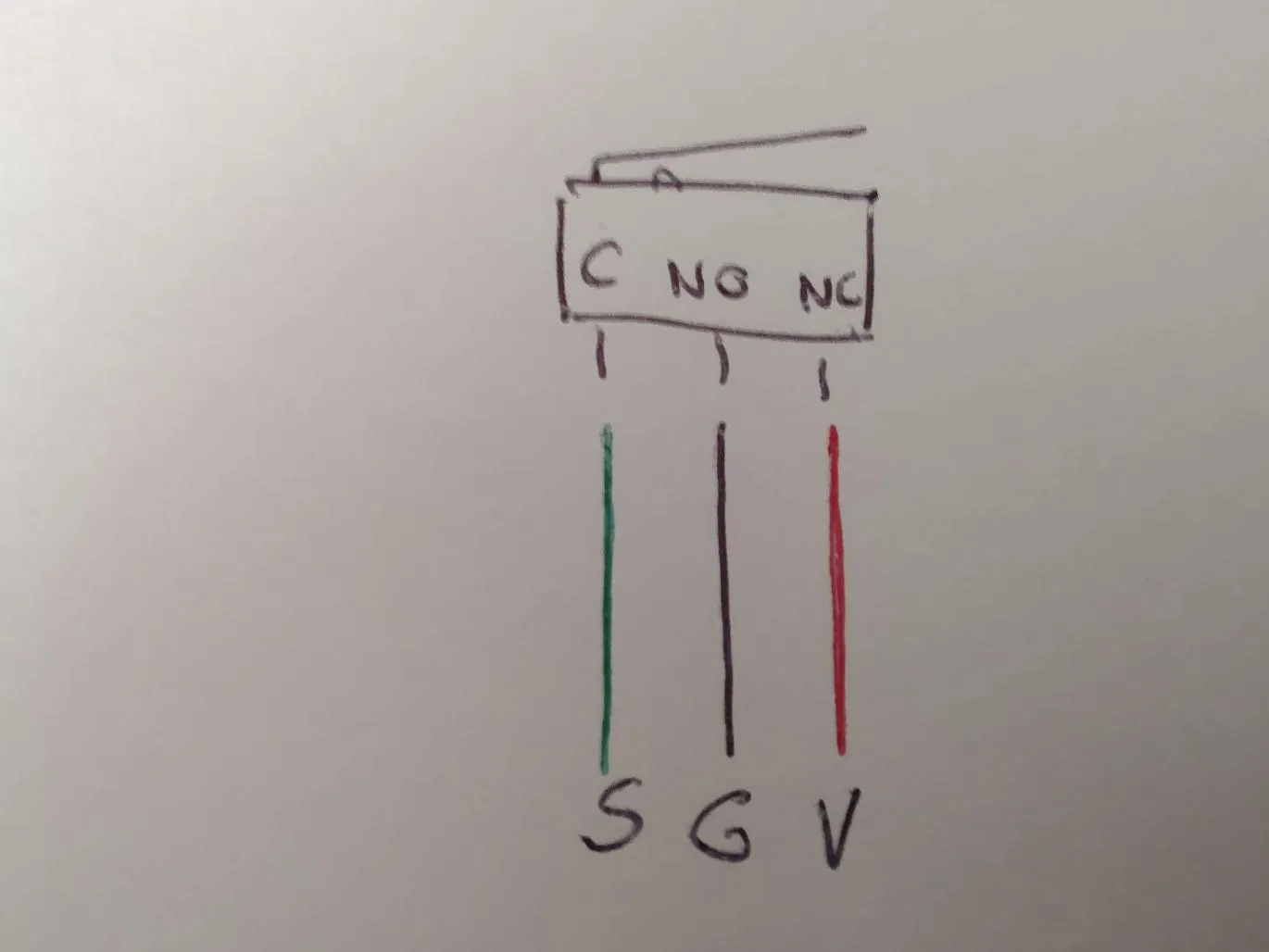

Note : on the cables I bought the cable order/color doesn't match the connector on the PCB. You may need to adjust them accordingly. V = Red, G = black, S = Yellow (color may vary).

2.2 Insert a 25mm length of heat shrink tubing around the three cables before soldering the cable to the microswitch. Or alternatively, you can insert them inside the tube already present on the stepper motor cables.

2.3 Solder the cables to the microswitch.

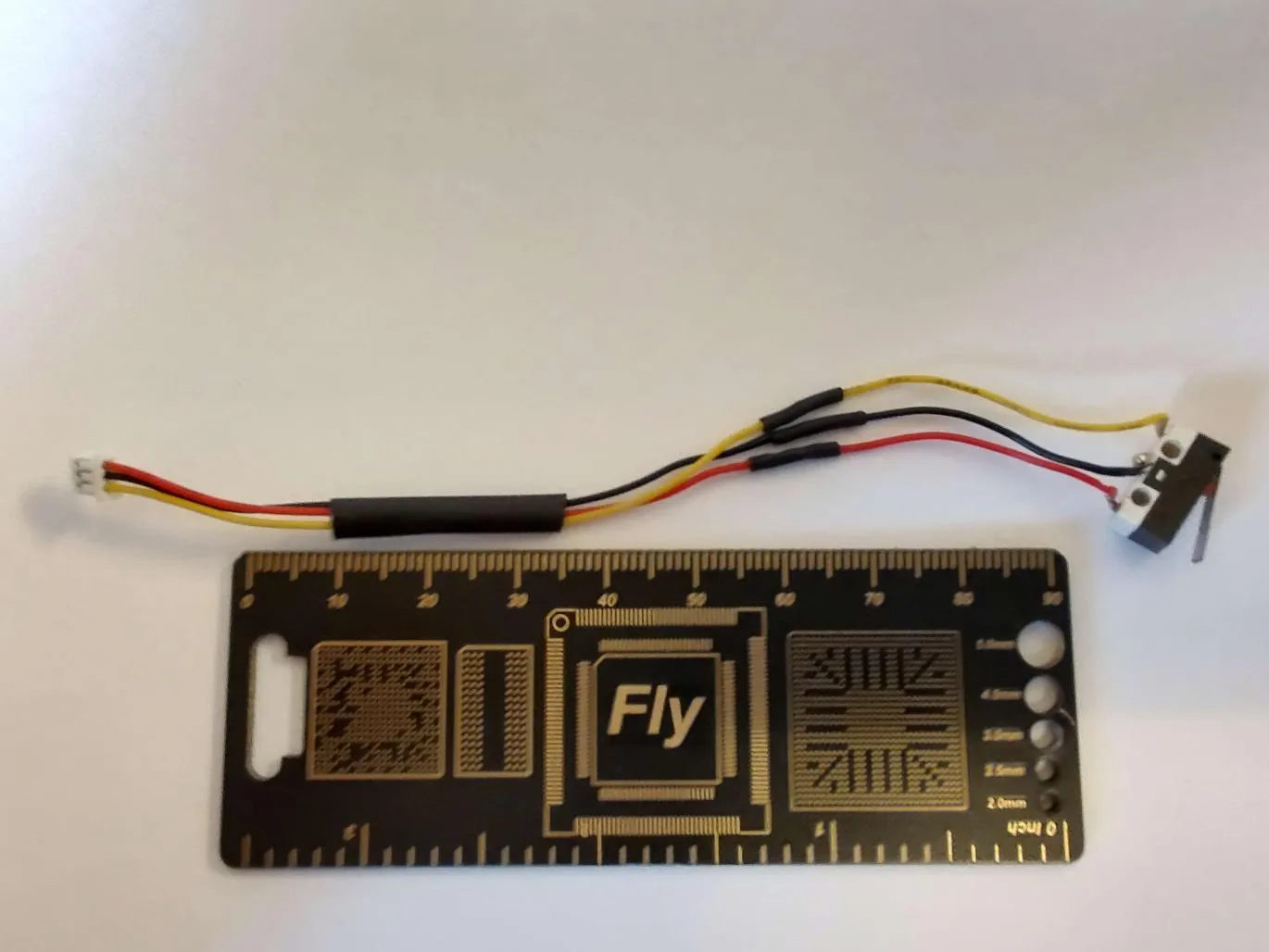

Once done it should look like that.

3. Installation

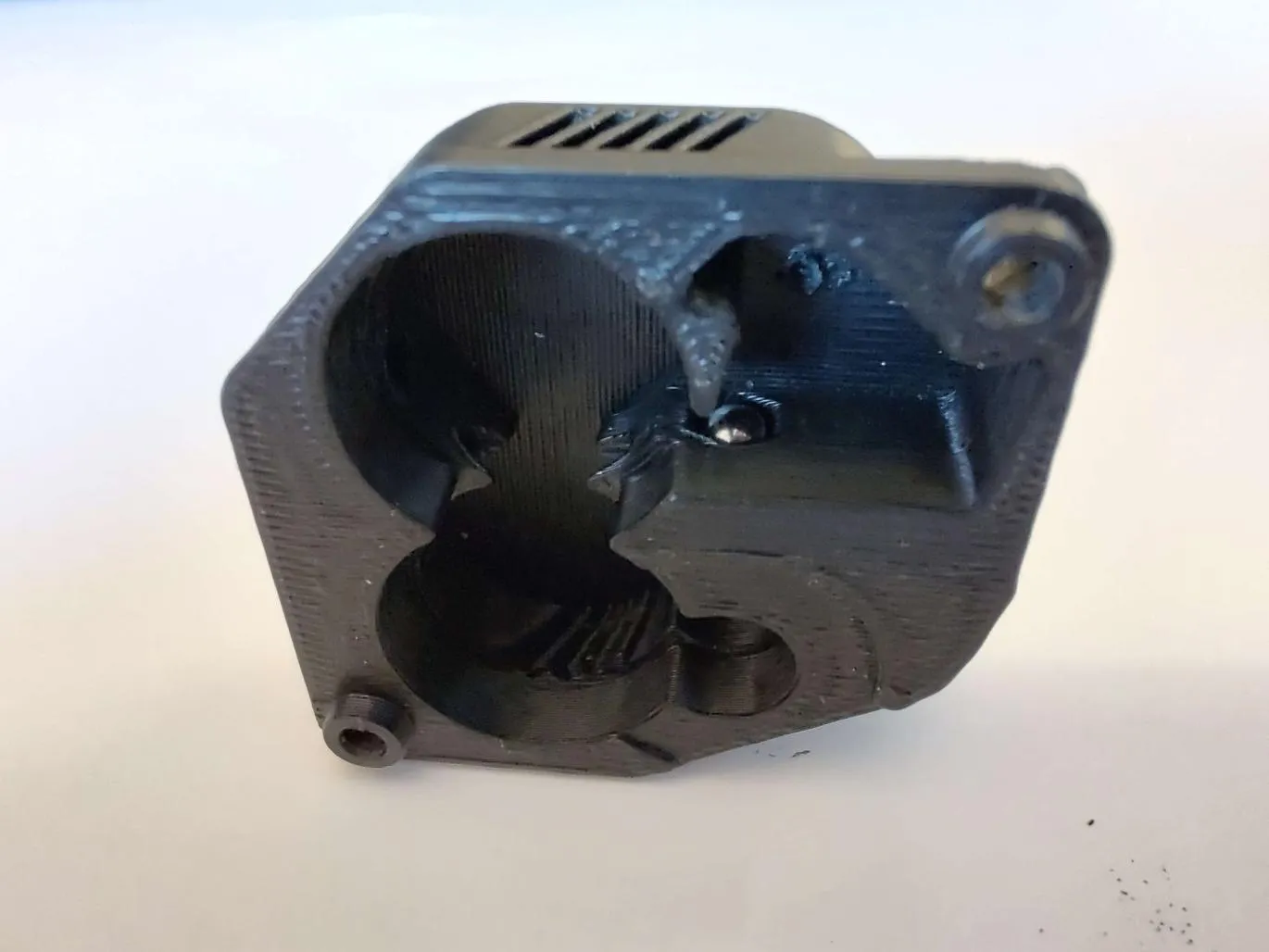

3.1 Insert the steel ball in its channel

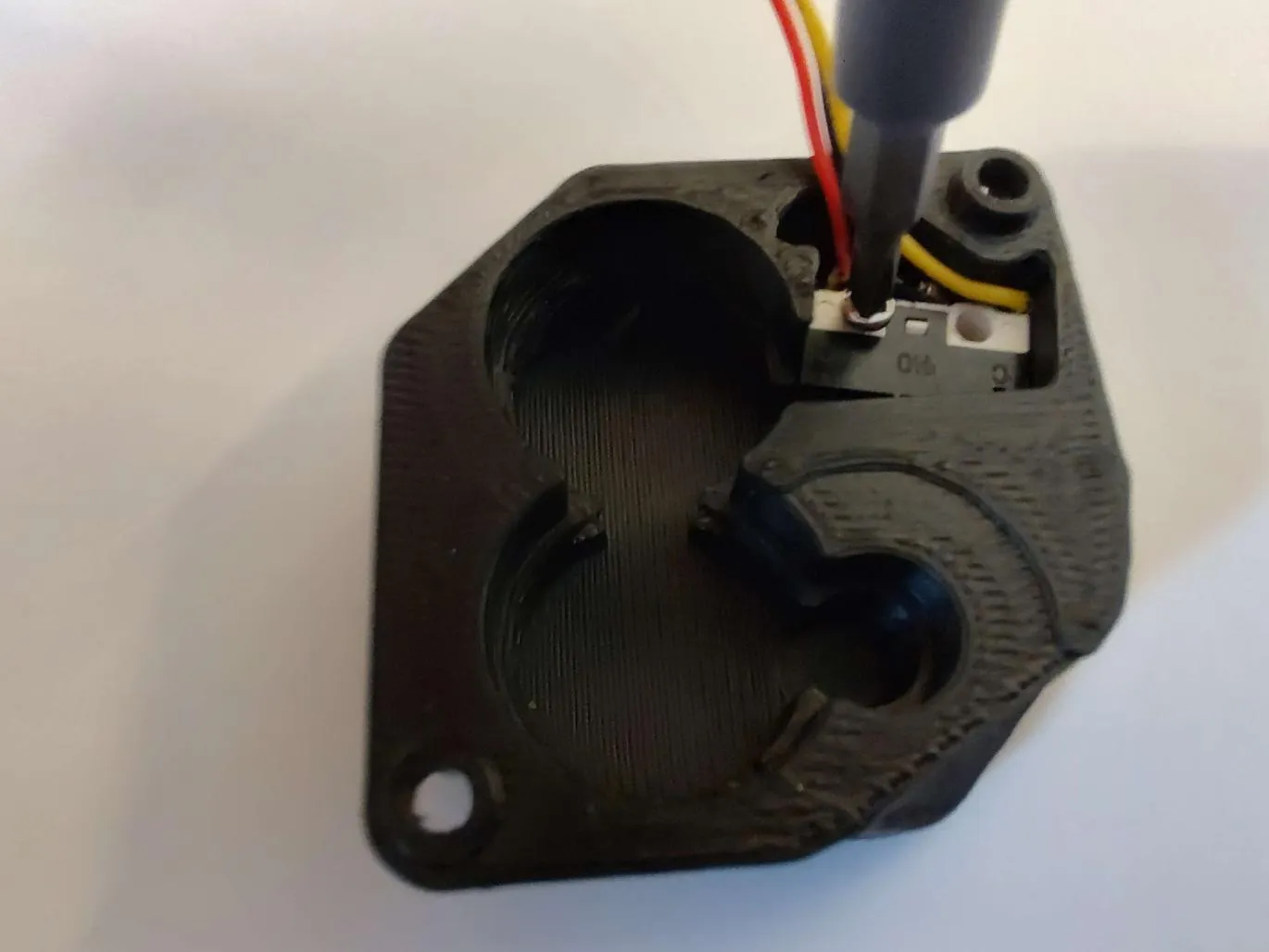

3.2 Insert the microswitch and screw it down with one M2x8mm self threading screw in the bottom hole

3.3 You can now reassemble the extruder, mount it onto the carriage and connect the sensor and the stepper motor to the the toolhead pcb.

4. Klipper Config

Go to the Documentation section and download the Klipper-config.txt file for more information.

5. Slicer settings recommendations

I recommend you to disable arc fitting.

This settings allows arc gcode commands (G2 & G3) to be generated in addition of the linear movement commands (G0 & G1). This feature is nice for reducing the weight of the gcode files.

But when the runout sensor is so close to the driving gears, there is not much filament left between the sensor and those gears when the runout is detected. And the print can only be paused between two gcode commands.

In the worst case, if the runout is detected when you are printing a perfect circle, its diameter can be printed with only one arc command. This command will more likely require more than the remaining filament. The filament will pass the gears before the print is paused. Therefore it will be impossible to retract it afterwards. And bigger is the circle, bigger are the chance for this to happen.

By disabling arc fitting, you will reduce drastically the chances for this to happen. But it could still happen on big linear move command, keep that in mind.

I've updated the macro and increase the reactivity of the sensor in order to avoid this issue as much as possible.

Change Log

16 December 2023
Slicer recommendations added

14 December 2023
Updated Macro : increased detection reactivity.

24 November 2023
First release
